4-Cavity Precision Injection Mold for Thin-Wall Containers

Target Industry: Food Service Packaging & Commercial Container Manufacturing

Background & Challenge

Driven by increasing market demand for high-volume takeaway packaging and food containers, our client required a reliable molding solution to optimize production yield for PP/PET thin-walled containers while maintaining high dimensional precision and structural stability.

Engineering Solution & Key Features

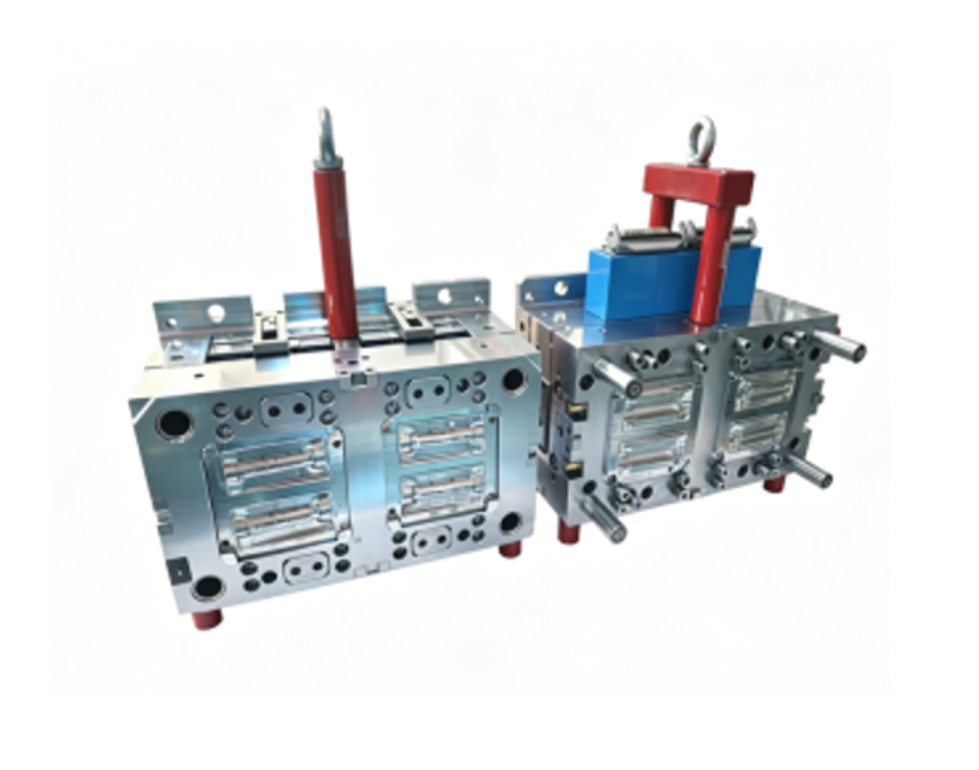

We engineered a robust 4-cavity precision injection mold built for efficient, high-volume production. Constructed from pre-hardened alloy steel (P20/718H), the mold incorporates a multi-zone hot runner temperature control system and dedicated safety lifting assemblies for seamless maintenance and operation.

Optimized Cavity Layout: The balanced 2×2 cavity configuration ensures uniform melt flow and consistent clamping pressure, delivering reliable part-to-part repeatability and low unit manufacturing costs.

High-Efficiency Thermal Management: Strategic cooling channel placement paired with high-conductivity copper alloy inserts ensures rapid, uniform heat dissipation. This shortens cycle times and helps prevent warping or sink marks on thin-walled sections.

Precision Surface Finish: High-polish cavity surfaces and optimized runner geometry facilitate smooth material filling under high pressure, ensuring consistent part weight and structural integrity.

Outcome

The mold system integrates smoothly into automated packaging lines, optimizing hourly throughput, maintaining dimensional accuracy, and providing a cost-effective solution for high-volume plastic container production.
