Custom Plastic Injection Molding for High-Precision Metal-Plastic Hybrid Gears

In high-precision compact drive systems—such as 3D printer extruders and robotic vacuum gearboxes—drive components must reliably endure continuous high-frequency directional shifts, heavy peak torque, and low-noise operational constraints. Traditional all-metal gears produce significant meshing noise and high rotational inertia, whereas standard plastic gears lack the rigidity needed under heavy sustained loads, often leading to keyway deformation and rotational slippage. Achieving the ideal balance required a advanced custom injection molding approach.

Solution Strategy

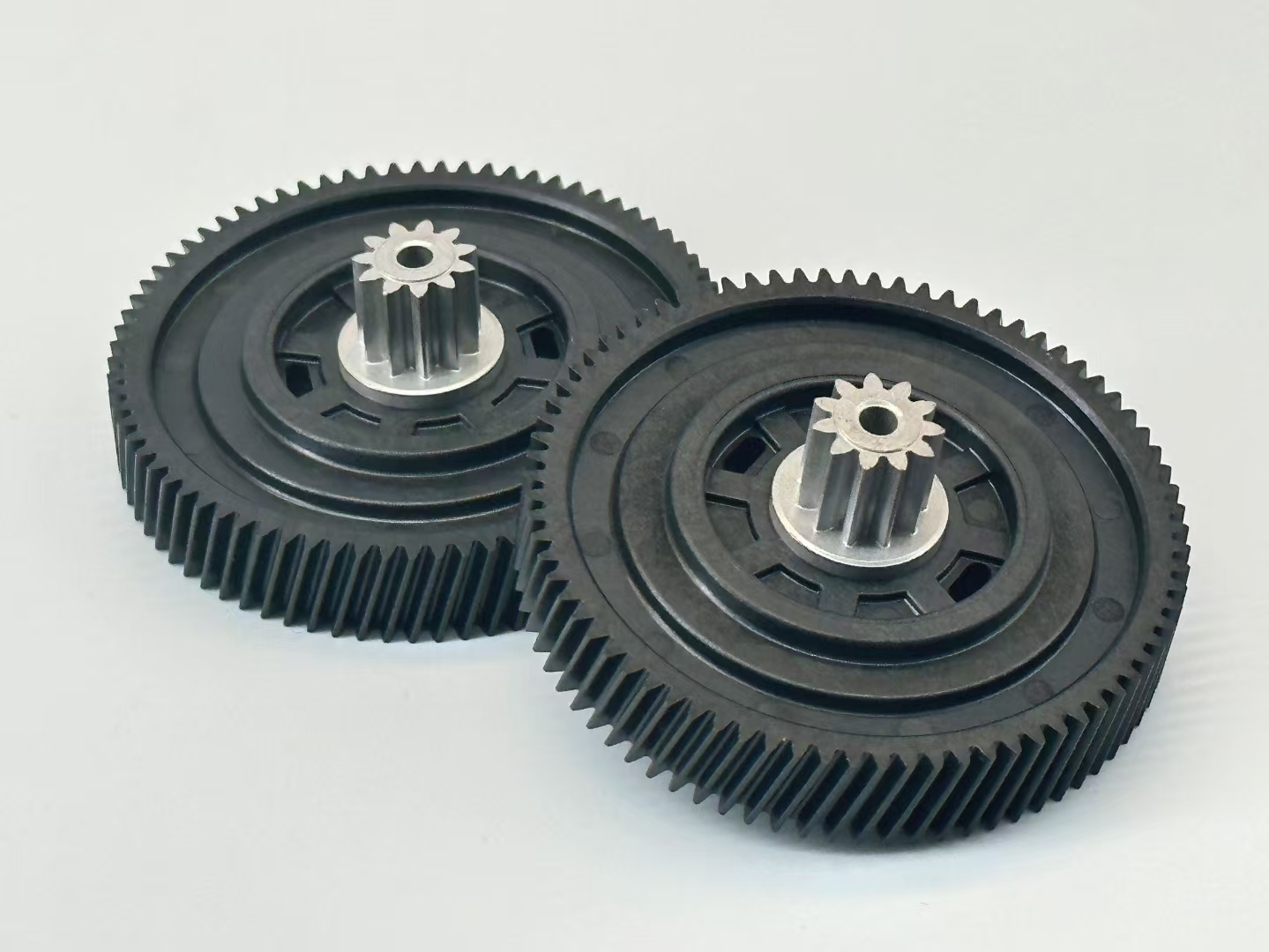

To mitigate these transmission bottlenecks, our engineering team leveraged high precision plastic injection molding to create a insert-molded hybrid gear architecture:

Sintered Metal Core: A high-strength powder metallurgy central pinion is insert-molded to receive direct driving torque. It effectively absorbs stress concentrations, eliminating keyway deformation and shaft slippage.
Low-Noise POM Helical Gear Body: Utilizing high precision injection molding, the outer gear body is precision-molded from self-lubricating Polyoxymethylene (POM). The optimized helical teeth increase the contact ratio, drastically reducing friction, vibration, and meshing noise.
Mechanical Interlocking Anchors: Engineered keyways and undercut features on the metal core allow plastic to flow and solidify seamlessly during custom plastic injection molding, creating a high-shear mechanical interlocking structure that prevents interface delamination under dynamic reversing loads.

Verified Application Benefits
Noise Reduction: Lowers operational noise by 3–5 dB(A) compared to conventional all-metal gear trains.
Structural Integrity: Eliminates shaft-hole slippage and deformation under continuous high-torque operations.
Inertia & Weight Reduction: Decreases total gear assembly weight and mass moment of inertia, enhancing dynamic motor response during high-frequency directional changes.
